This Super small quality built bottle style battery is custom built for Cap Rouge with high quality Samsung Cells.

Complete battery kit, comes with docking station, can fit on all bikes to the down tube.

This battery is ideal for new build bikes, or for replacing obsoleted batteries. Comes with discharge cable fitted with popular micro Anderson connectors.

Built to Cap Rouge specifications, this battery is suitable for bikes with motors up to and including 600W

High quality, long life battery built using 18650 cells

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017, beware as many Australian suppliers do not mention the brand of cell used

SPECIFICATION:

• 36 Volts
• 7 Ah
• 252 Wh
• 10S2P
• Dimension: L 210mm - W 77mm - H 77mm
• 1.65 Kg weight of battery, Including bracket, excluding charger
• Samsung 35E 3500mAh 18650 cells, tested to EN62133-2-22017
• Discharge cable with Micro Anderson connector
• 1-5A, 2A, 3A or 4A Battery charger options
• ST3 3 pin charging port
• 5A maximum charging input
• 20A Continuous discharge BMS - for motors upto 600W
• 2 Keys included
• Battery Management System (BMS)

PROTECTION FUNCTION:

1. Charging voltage
2. Balance voltage for single cell
3. Current consumption
4. Maximal continuous charging current
5. Maximal continuous Discharging current
6. Over charge Protection
7. Over discharge protection
8. Over current protection
9. Short protection
10. Resistance Protection

Built to Cap Rouge specifications, this battery is suitable for bikes with motors up to and including 800W

High quality, long life battery built using 18650 cells

Complete battery kit, comes with docking station, can fit on all bikes to the down tube.

This battery is ideal for new build bikes, or for replacing obsoleted batteries. Comes with discharge cable fitted with popular micro Anderson connectors.

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017, beware as many Australian suppliers do not mention the brand of cell used

SPECIFICATION:

• 36 Volts
• 10.5 Ah
• 378 Wh
• 10S3P
• Dimensions L 320mm - W 90mm - H 98mm
• Samsung 35E 3500mAh 18650 cells, tested to EN62133-2-22017
• Discharge cable with Micro Anderson connector
• 1-5A, 2A, 3A or 4A Battery charger options
• ST3 Charging Port
• 5A maximum charge input
• Continuous discharge 25A for motors upto 800W
• 2 Keys included
• Weight 2.65Kg
• Battery Management System (BMS)

PROTECTION FUNCTION:

1. Charging voltage
2. Balance voltage for single cell
3. Current consumption
4. Maximal continuous charging current
5. Maximal continuous discharging current
6. Over charge Protection
7. Over discharge protection
8. Over current protection
9. Short protection
10. Resistance Protection

This battery is made to fit in a range of location, under the seat on the seat post, on bike frame, excellent for three wheeler etc.

Your kit includes battery pack and mounting bracket

Built to Cap Rouge specifications, this battery is suitable for bikes with motors up to and including 950W

High quality, long life battery built using 18650 cells

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used

SPECIFICATIONS:

• 36 volts
• 10.4 Ah
• 374 Wh
• 10S3P
• Weight 2.30KG Excluding Charger
• Dimensions: L 179mm - W 121mm - H 138mm (Including bracket) refer to images
• 30A continuous discharge for motors upto 950W
• Samsung 29E cells, tested to EN62133-2-22017
• ST3 3 pin charging port
• 1-5A, 2A, 3A or 4A Battery charger options
• 5A maximum charge input
• 2 Keys included
• Discharge cable with Micro Anderson connector
• Battery Management System (BMS) Managing

FEATURES:

1. Charging voltage
2. Balance voltage for single cell
3. Current consumption
4. Maximal continuous charging current
5. Maximal continuous Discharging current
6. Over charge Protection
7. Over discharge protection
8. Over current protection
9. Short protection
10. Resistance Protection

Adjustable Rack - Fit's 26", 27.5", 28", 29", 700C Bikes With Common 135mm Dropout

Your battery includes everything you need to replace your current, or install a new rear rack battery. These are normally fitted to the rear rack of the bike

Popular SSE-027 battery, fits a wide range of imported bicycles, or can be used to fit a new battery on your rear rack. Coming with battery pack and battery retaining bracket

Built to Cap Rouge specifications, this battery is suitable for bikes with motors up to and including 800W

High quality, long life battery built using 18650 cells

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used

SPECIFICATION:

• 36V
• 10.4 AH
• 374 Wh
• 10S3P
• Dimensions: L 360mm - W 155mm - H 60mm
• DMEGC 18650 cells, tested to EN62133-2-22017
• Weight 2.7Kg excluding charger
• 2 Keys with docking station included
• ST3 3 pin charging por
• 1-5A, 2A, 3A or 4A Battery charger options
• 5A maximum charging input
• Discharge cable with Micro Anderson connector
• 25A Continuous discharge BMS for motors upto 900W
• Battery Management System (BMS) Managing

FEATURES:

1. Charging voltage
2. Balance voltage for single cell
3. Current consumption
4. Maximal continuous charging current
5. Maximal continuous Discharging current
6. Over charge Protection
7. Over discharge protection
8. Over current protection
9. Short protection
10. Resistance Protection

Adjustable Rack - Fit's 26", 27.5", 28", 29", 700C Bikes With Common 135mm Dropout

Your battery includes everything you need to replace your current, or install a new rear rack battery. These are normally fitted to the rear rack of the bike

Popular SSE-027 battery, fits a wide range of imported bicycles, or can be used to fit a new battery on your rear rack. Coming with battery pack, battery retaining bracket and charger

Built to Cap Rouge specifications, this battery is suitable for bikes with motors up to and including 850W

High quality, long life battery built using 18650 cells

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used

SPECIFICATION:

• 36V
• 14 Ah
• 504 Wh
• 13S4P
• Dimensions: L 360mm - W 155mm - H 60 mm
• Samsung 35E cells, tested to EN62133-2-22017
• Weight 3.15 kg
• ST3 3 pin charging port
• 1-5A, 2A, 3A or 4A Battery charger options
• 5A maximum charge current
• Keys with docking station included
• Discharge cable with Micro Anderson connector
• Continuous discharge 25A
• Battery Management System (BMS) Managing

PROTECTION FUNCTION:

1. Charging voltage
2. Balance voltage for single cell
3. Current consumption
4. Maximal continuous charging current
5. Maximal continuous Discharging current
6. Over charge Protection
7. Over discharge protection
8. Over current protection
9. Short protection
10. Resistance Protection

Hailong 01 battery, fits a broad range of bikes including:

Built to Cap Rouge specifications, this battery is suitable for bikes with motors up to and including 1300W

High quality, long life battery built using 18650 cells

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used

SPECIFICATION:

• 36V
• 14.5 AH
• 522Wh
• DMEGC 2900 Mah cells, tested to IEC62133
• Dimensions: L 367mm - W 90mm - H 92mm including mounting bracket
• Weight 3.3Kg Excluding Charger
• 4 Pin model
• 2A, 3A or 4A Battery charger options
• ST3 3 Pin charging port
• Discharge cable with Micro Anderson connector
• 5A maximum charge input
• Keys with docking station
• 40A Continuous discharge - For motors upto 1300W
• Battery Management System (BMS) Managing

PROTECTION FUNCTION:

1. Charging voltage
2. Balance voltage for single cell
3. Current consumption
4. Maximal continuous charging current
5. Maximal continuous Discharging current
6. Over charge Protection
7. Over discharge protection
8. Over current protection
9. Short protection
10. Resistance Protection

Built to Cap Rouge specifications, this battery is suitable for bikes with motors up to and including 1300W

This battery is one of Cap Rouge specialties. We are the first Australian reputable company to use top line 21700 cells. This battery is for long life and high performance.

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used

SPECIFICATION:

• 36 Volts
• 15 Ah
• 540 Wh
• 10S3P
• Dimensions: L 367mm - W 95mm - H 98mm
• Samsung 50G 5000mah cells, tested to EN62133-2-22017
• 3.15kg, excluding charger
• 40A continuous discharge, for motors upto 1300W
• Discharge cable fitted with micro Anderson connectors
• 1-5A, 2A, 3A or 4A Battery charger options
• ST3 3 pin charging port
• 5A maximum charge input
• Battery base bracket including which has 4 mounting slots
• Battery power indicator
• 2 keys

PROTECTION FUNCTION:

1. Charging voltage
2. Balance voltage for single cell
3. Current consumption
4. Maximal continuous charging current
5. Maximal continuous Discharging current
6. Over charge Protection
7. Over discharge protection
8. Over current protection
9. Short protection
10. Resistance Protection

High quality, long life battery built using 21700 cells

Built to Cap Rouge specifications, this battery is suitable for bikes with motors up to and including 1300W

This battery is one of Cap Rouge specialties. We are the first Australian reputable company to use top line 21700 cells. This battery is for long life and high performance.

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used

SPECIFICATION:

• 36 Volts
• 20 AH
• 720 Wh
• 10S4P
• Samsung 50G 21700 cells, tested to EN62133-2-22017
• 1-5A, 2A, 3A or 4A Battery charger options
• ST3 3 pin charging port
• 5A maximum charge input
• Dimensions: L 367mm - W 95mm - H 98mm
• Docking station
• 2 keys included
• Weight 3.85 KG Excluding Charger
• Battery base bracket including which has 4 mounting slots
• Discharge cable with Micro Anderson connectors
• 40A Continuous discharge BMS, excellent for powering up to 1300W
• Battery Management System (BMS) Managing

PROTECTION FUNCTION:

1. Charging voltage
2. Balance voltage for single cell
3. Current consumption
4. Maximal continuous charging current
5. Maximal continuous Discharging current
6. Over charge Protection
7. Over discharge protection
8. Over current protection
9. Short protection
10. Resistance Protection

This battery is one of Cap Rouge specialties. We are the first Australian reputable company to use top line 21700 cells. This battery is for long life and high performance.

Built to Cap Rouge specifications, this battery is suitable for bikes with motors up to and including 1700W

High quality, long life battery built using 21700 cells

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used

SPECIFICATION:

• 36 Volts
• 25 Ah
• 900 Wh
• 10S5P
• Dimensions: L 367mm - W 95mm - H 125mm
• Samsung 50G 5000mAh 21700 cells, tested to EN62133-2-22017
• ST3 3 Pin charging port
• 1-5A, 2A, 3A or 4A Battery charger options
• 5A maximum charging input
• Discharge cable with Micro Anderson connector
• 50A Continuous discharge, for motors up to 1700W
• Battery base bracket including which has 4 mounting slots
• 4.65Kg excluding charger
• Battery Management System (BMS)

PROTECTION FUNCTION:

1. Charging voltage
2. Balance voltage for single cell
3. Current consumption
4. Maximal continuous charging current
5. Maximal continuous Discharging current
6. Over charge Protection
7. Over discharge protection
8. Over current protection
9. Short protection
10. Resistance Protection

Built to Cap Rouge specifications, this battery is suitable for bikes with motors up to and including 1800W

High quality, long life battery built using 21700 cells

This battery is one of Cap Rouge specialties. We are the first Australian reputable company to use top line 21700 cells. This battery is for long life and high performance.

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used

SPECIFICATION:

• 48 Volts
• 15 Ah
• 720 Wh
• Dimensions: L 367mm - W 95mm - H 98mm
• 13S3P
• Samsung 50G 21700 5000mAh cells, tested to EN62133-2-22017
• 3.95kg, including bracket / excluding charger
• 40A continuous discharge, for motors up to 1800W
• Discharge cable with micro Anderson connector
• 1-5A, 2A, 3A, or 4A Battery charger options
• ST3 3 pin charging Port
• 5A maximum charge input
• Battery base bracket included
• Battery power indicator
• 2 keys included
• Battery Management System (BMS)

PROTECTION FUNCTION:

1. Charging voltage
2. Balance voltage for single cell
3. Current consumption
4. Maximal continuous charging current
5. Maximal continuous Discharging current
6. Over charge Protection
7. Over discharge protection
8. Over current protection
9. Short protection
10. Resistance Protection

Built to Cap Rouge specifications, this battery is suitable for bikes with motors up to and including 2400W

High quality, long life battery built using 21700 cells

This battery is one of Cap Rouge specialties. We are the first Australian reputable company to use top line 21700 cells. This battery is for long life and high performance.

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used

XT90 Spark proof connector instructions here

SPECIFICATION:

• 48 Volts
• 20 Ah
• 960 Wh
• 13S4P
• Samsung 50G 21700 cells, tested to EN62133-2-22017
• Dimensions: L 367mm - W 95mm - H 125mm
• 2A, 3A, 4A or 1-5A variable battery charger options
• ST3 3 pin charging port
• 5A maximum charging input
• 4.95 Kg Including bracket / excluding charger
• Discharge cable with micro XT90 female connector
• 50A Continuous discharge, for motors up to 2400W
• Battery base bracket included
• Battery power indicator
• 2 Keys included
• Battery Management System (BMS)

PROTECTION FUNCTION:

1. Charging voltage
2. Balance voltage for single cell
3. Current consumption
4. Maximal continuous charging current
5. Maximal continuous Discharging current
6. Over charge Protection
7. Over discharge protection
8. Over current protection
9. Short protection
10. Resistance Protection

*Images for visual purposes only

Built to Cap Rouge specifications, this battery is suitable for bikes with motors up to and including 2400W

High quality, long life battery built using 21700 cells

This battery is one of Cap Rouge specialties. We are the first Australian reputable company to use top line 21700 cells. This battery is for long life and high performance.

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used

XT90 Spark proof connector instructions here

SPECIFICATIONS:

• 48 Volts
• 25 Ah
• 1200 Wh
• 13S5P
• Samsung 50G 21700 cells, tested to EN62133-2-22017
• Dimensions: L 367mm - W 95mm - H 150mm
• 2A, 3A, 4A or 1-5A variable battery charger options
• ST3 3 pin charging port
• 5A maximum charging input
• 5.95 Kg Including bracket / excluding charger
• Discharge cable with micro XT90 female connector
• 50A Continuous discharge, for motors up to 2300W
• Battery base bracket included
• Battery power indicator
• 2 Keys included
• Battery Management System (BMS)

PROTECTION FUNCTION:

1. Charging voltage
2. Balance voltage for single cell
3. Current consumption
4. Maximal continuous charging current
5. Maximal continuous Discharging current
6. Over charge Protection
7. Over discharge protection
8. Over current protection
9. Short protection
10. Resistance Protection


*Images for visual purposes only

Great For Backpacks! Extra Layer Of High Grade Thick Rubber Shrink

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used

Cube shaped battery, to suit a large number of bicycle frames, bags, backpacks or other applications

These packs can be used for smaller spacers and to save weight amongst many other uses.

SPECIFICATION:

• 52 Volt
• 8AH / 416 WH
• 4000Mah 21700 Samsung 40T cells, tested to EN62133-2-22017
• 14S2P
• Dimensions: L 160mm - W 72mm - H 100mm can be placed in any direction
• 50A continuous discharge for motors up to 2500W
• ST3 3 Pin charging port
• 1-5A, 2A, 3A, 4A Battery charger options
• 5A maximum charge input
• Weight 2.25 KGS
• Discharge cable with XT60 Female connector
• Extra durable black rubber outer casing
• Internal battery pack encased in protective case
• Battery Management System (BMS)

PROTECTION FUNCTION:

1. Charging voltage
2. Balance voltage for single cell
3. Current consumption
4. Maximal continuous charging current
5. Maximal continuous Discharging current
6. Over charge Protection
7. Over discharge protection
8. Over current protection
9. Short protection
10. Resistance Protection

High quality, long life battery built using 21700 cells. This battery is one of Cap Rouge specialties. We are the first Australian reputable company to use top line 21700 cells. This battery is for long life and high performance.

Built to Cap Rouge specifications, this battery is suitable for bikes with motors up to and including 2500W

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used

XT90 Spark proof connector instructions here

SPECIFICATION:

• 52 Volts
• 10 Ah
• 520 Wh
• 14S2P
• Samsung high discharge 50S 21700 cells, tested to EN62133-2-22017
• Dimensions: L 279mm - W 89mm - H 107mm
• ST3 3 pin charger port
• 1-5A, 2A, 3A or 4A battery charger options
• 5A maximum charge input
• 2.9 Kg Including bracket
• Discharge cable with XT90 female connector
• 50A Continuous discharge, for motors up to 2500W
• Battery base bracket included
• Battery power indicator
• 2 Keys included
• Battery Management System (BMS)

PROTECTION FUNCTION:

1. Charging voltage
2. Balance voltage for single cell
3. Current consumption
4. Maximal continuous charging current
5. Maximal continuous Discharging current
6. Over charge Protection
7. Over discharge protection
8. Over current protection
9. Short protection
10. Resistance Protection

This battery is built in a low profile case, for bikes with restricted access.

DP-5 Polly case, with added fitment options.

Built to Cap Rouge specifications, this battery is suitable for bikes with motors up to and including 2000W

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used

SPECIFICATION:

• 52 Volts
• 14 Ah
• 728 Wh
• 14S4P
• Panasonic NCR18650GA 18650 cells, compliant to 62133-2-2017
• Dimensions: L 368mm - W 90mm - H 96mm
• 3.70kg excluding charger
• Discharge cable fitted with micro Anderson connectors
• ST3 3 pin charging port
• 1-5A, 2A, 3A or 4A Battery charger options
• 5A maximum charging input
• Battery docking station included
• Battery power indicator
• 40A continuous discharge BMS for motors up to 2000w
• 2 key included
• Battery Management System (BMS)

PROTECTION FUNCTION:

1. Charging voltage
2. Balance voltage for single cell
3. Current consumption
4. Maximal continuous charging current
5. Maximal continuous Discharging current
6. Over charge Protection
7. Over discharge protection
8. Over current protection
9. Short protection
10. Resistance Protection

Extra Layer Of High Grade Thick Rubber Shrink

Rectangle shaped battery, to suit a large number of bicycle frames or other applications

These packs can be used for smaller spacers and to save weight amongst many other uses.

Built to Cap Rouge specifications, this battery is suitable for bikes with motors up to and including 4000W

High quality, long life battery built using 21700 cells

This battery is one of Cap Rouge specialties. We are the first Australian reputable company to use top line 21700 cells. This battery is for long life and high performance.

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used

XT90 Spark proof connector instructions here

SPECIFICATION:

• 52 Volt
• 15 Ah
• 780 Wh
• 14S3P
• 5000mAh 21700 Samsung 50S cells, tested to EN62133-2-22017
• Dimensions: L 240mm - W 92mm - H 85mm, can be placed in any direction
• 80A continuous discharge for motors up to 4000w
• XT60 Female Charging Port -
• 1-5A, 5A and 10A Charger optional
• 10A maximum charge input
• Weight 3.3 KGS
• Discharge cable with XT90 Female connector
• Extra durable black rubber outer casing
• Internal battery pack encased in protective case
• Battery Management System (BMS)

PROTECTION FUNCTION:

1. Charging voltage
2. Balance voltage for single cell
3. Current consumption
4. Maximal continuous charging current
5. Maximal continuous Discharging current
6. Over charge Protection
7. Over discharge protection
8. Over current protection
9. Short protection
10. Resistance Protection

Power up your ride with our high-performance A-Series ebike battery packs! This rechargeable powerhouse is designed for electric bicycles and seamlessly integrates with CYC's motor systems. With quality Samsung 50S cells, BMS, and quick release, you can count on reliable power delivery and long-lasting performance. Get ready to explore further and conquer any terrain with ease!

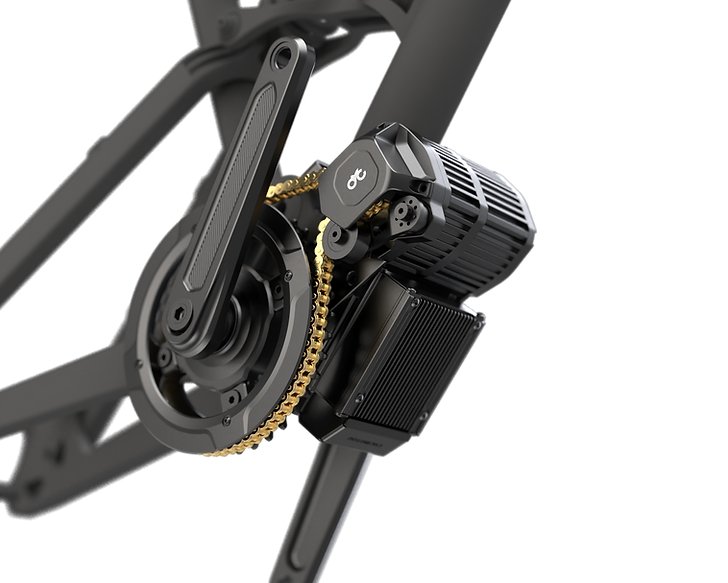

Compatible with all CYC mid-drive systems.

USER MANUAL HERE

INCLUDES:

• 4A fast charger
• Battery pack
• Mount

SPECIFICATION:

• Battery: A-52L
• Cell Type: Samsung 50S 21700
• Voltage: 52V 14s3p
• Capacity: 15Ah (780Wh)
• BMS Rating: 80A continuous discharge
• Total Weight 5 kg

Built to Cap Rouge specifications, this battery is suitable for bikes with motors up to and including 2000W

High quality, long life battery built using 18650 cells

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used

SPECIFICATION:

• 52V
• 17.5 AH
• 910 Wh
• 14S5P
• Samsung 35E cells, tested to EN62133-2-22017
• 1-5A, 2A, 3A or 4A Battery Battery charger options
• ST3 3 Pin charging Port
• 5A maximum charging input
• Dimensions: L 368mm - W 90mm - H 113mm
• Docking station
• 2 keys included
• Weight 4.55 KG Excluding Charger
• 4 mounting slots to connect to bike frame
• Discharge cable with micro Anderson connectors
• BMS continuous discharge 40A, suitable for motors up to 2000w
• Battery Management System (BMS)

PROTECTION FUNCTION:

1. Charging voltage
2. Balance voltage for single cell
3. Current consumption
4. Maximal continuous charging current
5. Maximal continuous Discharging current
6. Over charge Protection
7. Over discharge protection
8. Over current protection
9. Short protection
10. Resistance Protection

Built to Cap Rouge specifications, this battery is suitable for bikes with motors up to and including 2500W

High quality, long life battery built using 21700 cells

This battery is one of Cap Rouge specialties. We are the first Australian reputable company to use top line 21700 cells. This battery is for long life and high performance.

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used

XT90 Spark proof connector instructions here

SPECIFICATION:

• 52 Volts
• 20 Ah
• 1040 Wh
• 14S4P
• Samsung 50G 21700 cells, tested to EN62133-2-22017
• Dimensions: L 367mm - W 95mm - H 125mm
• 1-5A, 2A, 3A or 4A battery charger options
• ST3 3 pin charger port
• 5A maximum charge input
• 5.05 Kg Including bracket / excluding charger
• Discharge cable with XT90 female connector
• 50A Continuous discharge, for motors up to 2500W
• Battery base bracket included
• Battery power indicator
• 2 Keys included
• Battery Management System (BMS)

PROTECTION FUNCTION:

1. Charging voltage
2. Balance voltage for single cell
3. Current consumption
4. Maximal continuous charging current
5. Maximal continuous Discharging current
6. Over charge Protection
7. Over discharge protection
8. Over current protection
9. Short protection
10. Resistance Protection

High quality, long life battery built using 21700 cells
This battery is one of Cap Rouge specialties. We are the first Australian reputable company to use top line 21700 cells. This battery is for long life and high performance.

Built to Cap Rouge specifications, this battery is suitable for bikes with motors up to and including 4000W

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used

XT90 Spark proof connector instructions here

SPECIFICATION:

• 52 Volts
• 25 Ah
• 1300 Wh
• 14S5P
• Samsung 50S 21700 cells, tested to EN62133-2-22017
• Dimensions: L 367mm - W 95mm - H 125mm
• 1-5 Variable, 5A, 10A battery charger options
• XT60 Charger port
• 10A maximum charge input
• DP-21700-7 Reention case - Not interchangeable with other Reention DP casings
• 5.95 Kg Including bracket / excluding charger
• XT90 female discharge connector direct from battery
• 80A Continuous discharge, for motors up to 4000W
• Battery base bracket included
• Battery power indicator
• 2 Keys included
• Battery Management System (BMS)

PROTECTION FUNCTION:

1. Charging voltage
2. Balance voltage for single cell
3. Current consumption
4. Maximal continuous charging current
5. Maximal continuous Discharging current
6. Over charge Protection
7. Over discharge protection
8. Over current protection
9. Short protection
10. Resistance Protection

This battery is completely new to our range. Built to Cap Rouge specifications, this battery is suitable for bikes with motors up to and including 2500W

High quality, long life battery built using 18650 cells

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used

SPECIFICATION:

• 52V
• 26.4 AH
• 1373 Wh
• 14S8P
• EVE 3300Mah cells, tested to EN62133-2-22017
• 1-5A 2A, 3A or 4A Battery Battery charger options
• ST3 3 Pin charging Port
• 5A maximum charge input
• Overall Dimensions: L 380mm - W 76mm - H 215mm
• Weight 6.55 KG Excluding Charger
• 4 mounting slots to connect to bike frame
• Output XT90 Female
• Discharge cable with micro Anderson connectors
• 50A BMS continuous discharge, suitable for motors up to 2500w
• Battery Management System (BMS)

PROTECTION FUNCTION:

1. Charging voltage
2. Balance voltage for single cell
3. Current consumption
4. Maximal continuous charging current
5. Maximal continuous Discharging current
6. Over charge Protection
7. Over discharge protection
8. Over current protection
9. Short protection
10. Resistance Protection
