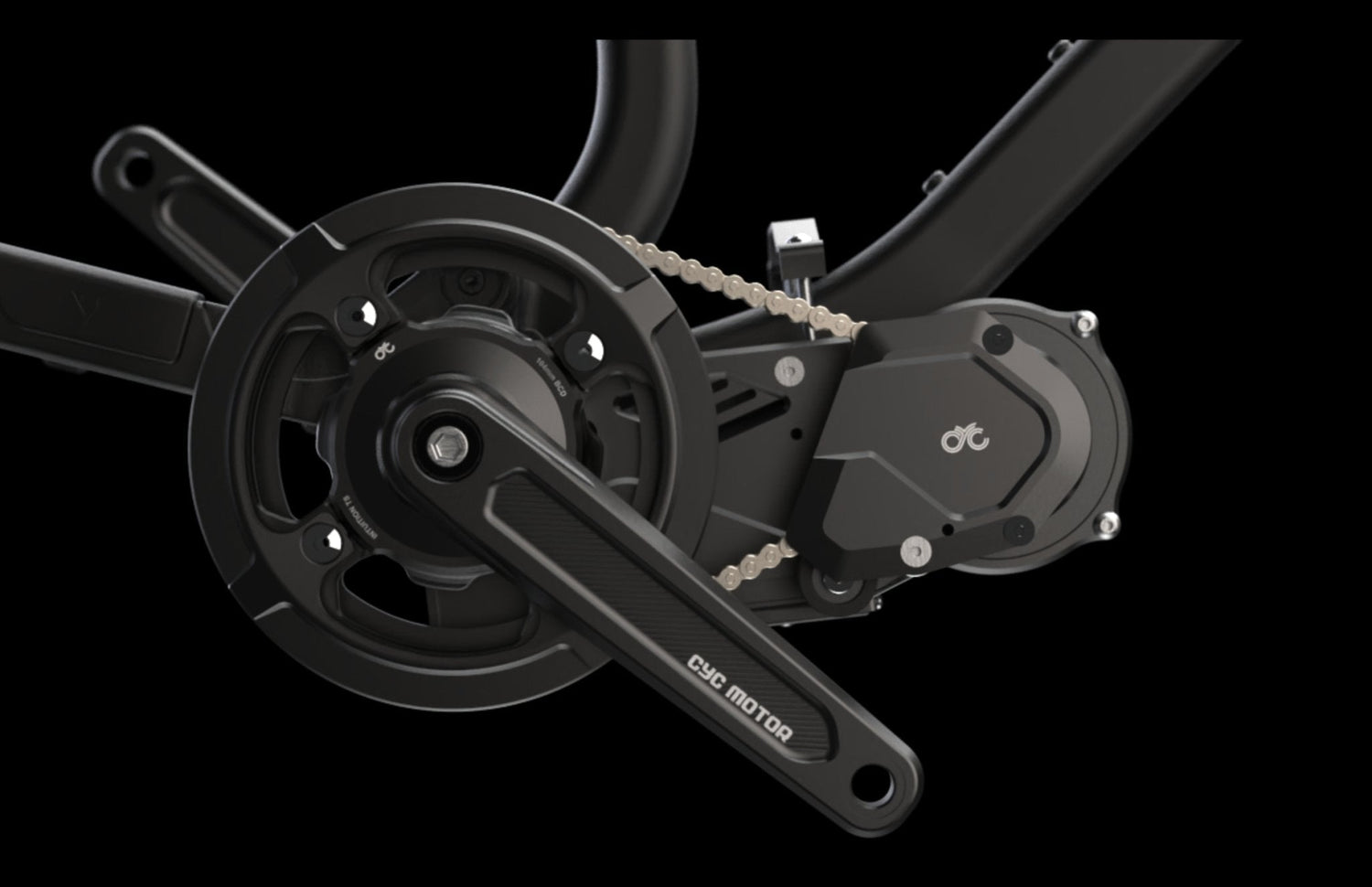

CYC X1 Stealth Gen 3 Mid Drive eBike Conversion Kit With 52V 20AH Battery
SEE ALL INCLUDED PRODUCT
VIEW ALL FEATURES AND DETAILS VIEW ALL DETAILS65+ km/h
Max Speed
1500 W
Rate Power
50–150 km
Mile Range
36 V to 52 V
Motor
Click me to read product description.
The package includes everything you need to convert your bike including battery, charger, plug and play wiring, tools and instructions.
The package includes everything you need to convert your bike except the battery:
52 Volt
20 Ah
1040 Wh
Samsung 50G 5000mah 21700 Cells
50A Continuous Discharge BMS - For Motors Up To 2500 Watts
ST3 3 Pin Charging Port
4A Battery Charger Included
Removable Branding
Reention DP-21700-5 Casing
UN38.3 Certification and MSDS
Multipurpose battery, Compatible with Bafang, CYC Motor, Tongsheng, Hub Motors and More
Dimensions: L 367mm - W 95mm - H 125mm
Built to Cap Rouge specifications, this battery is suitable for bikes with motors up to and including 2500W High quality, long life battery built using 21700 cells.
This battery is one of Cap Rouge specialties. We are the first Australian reputable company to use top line 21700 cells. This battery is for long life and high performance. All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used XT90 Spark proof connector instructions here
52 Volts
20 Ah
1040 Wh
14S4P
Samsung 50G 21700 cells, tested to EN62133-2-22017
Dimensions: L 367mm - W 95mm - H 125mm
4A battery charger included
ST3 3 pin charger port
5A maximum charge input
5.05 Kg Including bracket / excluding charger
Discharge cable with XT90 female connector
50A Continuous discharge, for motors up to 2500W
Battery base bracket included
Battery power indicator
2 Keys included
Battery Management System (BMS)
Charging voltage
Balance voltage for single cell
Current consumption
Maximal continuous charging current
Maximal continuous Discharging current
Over charge Protection
Over discharge protection
Over current protection
Short protection
Resistance Protection
Click me to read product description.
The package includes everything you need to convert your bike including battery, charger, plug and play wiring, tools and instructions.
The package includes everything you need to convert your bike except the battery:
52 Volt
20 Ah
1040 Wh
Samsung 50G 5000mah 21700 Cells
50A Continuous Discharge BMS - For Motors Up To 2500 Watts
ST3 3 Pin Charging Port
4A Battery Charger Included
Removable Branding
Reention DP-21700-5 Casing
UN38.3 Certification and MSDS
Multipurpose battery, Compatible with Bafang, CYC Motor, Tongsheng, Hub Motors and More
Dimensions: L 367mm - W 95mm - H 125mm
Built to Cap Rouge specifications, this battery is suitable for bikes with motors up to and including 2500W High quality, long life battery built using 21700 cells.
This battery is one of Cap Rouge specialties. We are the first Australian reputable company to use top line 21700 cells. This battery is for long life and high performance. All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used XT90 Spark proof connector instructions here
52 Volts
20 Ah
1040 Wh
14S4P
Samsung 50G 21700 cells, tested to EN62133-2-22017
Dimensions: L 367mm - W 95mm - H 125mm
4A battery charger included
ST3 3 pin charger port
5A maximum charge input
5.05 Kg Including bracket / excluding charger
Discharge cable with XT90 female connector
50A Continuous discharge, for motors up to 2500W
Battery base bracket included
Battery power indicator
2 Keys included
Battery Management System (BMS)
Charging voltage
Balance voltage for single cell
Current consumption
Maximal continuous charging current
Maximal continuous Discharging current
Over charge Protection
Over discharge protection
Over current protection
Short protection
Resistance Protection
SEE ALL INCLUDED PRODUCT
VIEW ALL FEATURES AND DETAILS VIEW ALL DETAILSFor any installation advice and guidance call Cap Rouge 🔋 We can make transforming your bike as easy and seamless as possible.
E-Bike Conversion Kit – Product Features |
|||
---|---|---|---|
Rated Voltage | 36V to 52V | 36V to 72V | 36V to 52V |
Construction | Geared (Torque Sensor) | Geared (Torque Sensor) | Geared (Torque Sensor) |
Max Torque | 150NM | 250NM | 110NM |
Open Size (mm) | 68MM-92MM | 68MM-120MM | 68MM-120MM |
Brake Type | Disc brake / V brake | Disc brake / V brake | Disc brake / V brake |
Top Speed | 65+ km/h | 90+ km/h | 50+ km/h |
Payload Capacity | 200KG | 200KG | 200KG |
Swipe Right to see more...
Real stories from real riders
E-bike Gallery
Bafang 36V BBS01B 250W Mid Drive eBike Conversion Kit With eBike eBike Battery Options 36V 250W BBS01B Mid-Motor 80Nm of Torque Pedal Assist A...
View full detailsMax Speed
35+ km/h
Mile Range
50–150 km
Rate Power
250 W
Motor
36 V
The Bafang 36V 250W BBS01B Mid Drive eBike Conversion Kit 68-73mm is a reliable and efficient way to convert your bike into an electric ride. Featuring a 250W motor and 36V system, it provides smooth and consistent power, making it ideal for everyday commuting and light recreational rides. The 68-73mm bottom bracket ensures compatibility with most bike frames, and the mid-drive motor enhances balance and efficiency. This kit offers a practical solution for cyclists looking to add electric power to their bike without sacrificing performance or handling.
36V 250W BBSO1B Motor 36V 250W Model: BBS01B motor. Fits 68-73mm Mounting kit included
Max Speed
35+ km/h
Mile Range
50–150 km
Rate Power
250 W
Motor
36 V
The Bafang 36V 250W BBS01B Motor 68-73MM is an efficient and reliable motor perfect for eBike conversions. With a 250W power output and 36V system, it provides smooth and consistent assistance, making it ideal for urban commuting and casual rides. The 68-73mm bottom bracket ensures compatibility with most bike frames, allowing for a seamless installation. This motor is a great choice for riders seeking a practical and cost-effective upgrade for their eBike, offering a balance of power, efficiency, and performance.
48V 750W BBSO2B Motor 48V 750W Model: BBS02B motor. Fits 68-73mm Mounting kit included
Max Speed
45+ km/h
Mile Range
50–150 km
Rate Power
750 W
Motor
48 V
The Bafang 48V 750W BBS02B Motor 68-73MM is a high-performance motor designed to provide a smooth and powerful riding experience. With its 750W power output and 48V system, it delivers excellent torque and efficiency, making it perfect for tackling hills and long-distance rides. The 68-73mm bottom bracket ensures compatibility with a wide range of bike frames. This motor is ideal for riders looking to enhance their bike's performance with a reliable, efficient, and affordable electric drive system.
Let one of our experts help you plan your ebike conversion.
